2024 Factory Produce Heavy Duty Rock Arm For Sany SY500 With Excavator Ripper

2024 Factory Produce Heavy Duty Rock Arm For Sany SY500 With Excavator Ripper

✅ Bucket cylinder is inverted,It effectively avoids damage to the piston rod caused by possible collisions during excavation, reduces use risks and saves maintenance costs.

✅ Increase the volume and weight of the arm,The digging force is stronger, the operation is easier and the efficiency is higher.

✅ The thickness of the arm and ripper decrease,To reduce excavation resistance, the ripper can be inserted into the working surface as a whole, making the excavation deeper and enabling full bucket loading

✅ Adjust the hinge point position of the lifting cylinder,The structure is stronger and stronger, effectively reducing the risk of cracking caused by high-intensity operations.

Applicable Excavalor Class	40-50 Tons	60-70 Tons	Over 80 Tons
Boom Length	5080±200mm	5300±500mm	6000±800mm
Arm Length	3330±200mm	3630±300mm	4200±400mm
Boom Weight	6800±800kg	13000±900kg	13000±1000kg
Arm Weight	7200±1000kg	12000±1200kg	12000±2000kg

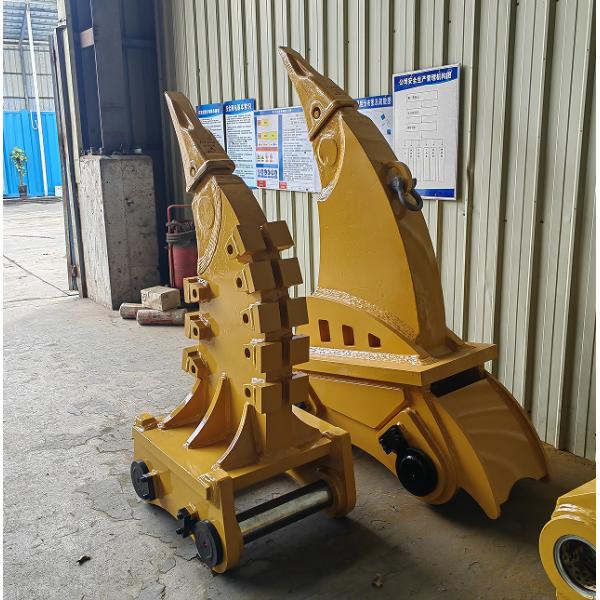

Ripper Size	1300mm	1500mm	1600mm
Ripper Weight	900-1200kg	1200-1800kg	1800-2500kg

1. Excavator High Reach Demolition Boom Arm

---

✅Seamless precision steel pipe

✅Centralized lubrication system

✅The boom seat sleeve adopts all in one molding process

✅Hydraulic pipelines section design, convenient for later maintenance

2. Excavator Pile Driving Boom Arm

---

✅ The angle between boom and horizon can reach 88°

✅The angle between boom and arm can reach 160°

✅Comparing with the same length pile driving arm, ours can pile higher.

3. Excavator Shorten Arm

---

✅Stop valves prevent oil leakage when replacing breaker by bucket.

✅Multi-layer welding of pipe connectors to reduce the risk of oil leakage

✅Cylinder protective cover is beneficial to preventing the cylinder from being damaged in collision

✅Q355B material, using high-quality accessories, full weld, double plate reinforcement in the stress position, etc.

4. Excavator Sliding Arm

---

✅Built-in antiwear plastic slider for easy replacement and maintenance

✅The double oil seal design for the telescopic cylinder prolongs its service life

✅The whole plate is cut, not spliced, so as to be more firm and not easy to deform

✅Steel sliders are welded between the skateboards to avoid direct contact wear

6. EXCAVATOR LONG REACH

---

✅The pipeline we use is international seamless precision pipeline.

✅The bushing on the boom base we use graphite alloy copper sleeve ,and other place we use steel bushing for easy maintenance

✅Chamfering bevel before welding, our muti-layer welding is full and smooth with many year professional experence .

✅Rivers cleaning dregging project

ZHONGHE triple quality control system

The first system is the technical design drawing review mechanism,
The second system is the semi-finished product review mechanism,
(each process has a detection testing for the previous process),

The third system is the finished product testing.
(Before painting, the overall inspection is carried out to check whether the design size matches the welding size, and whether the installation size meets the design requirement.)

To sum up, every single ZHONGHE product has been passed the above three-stage inspection system to ensure that is qualified before shipping.

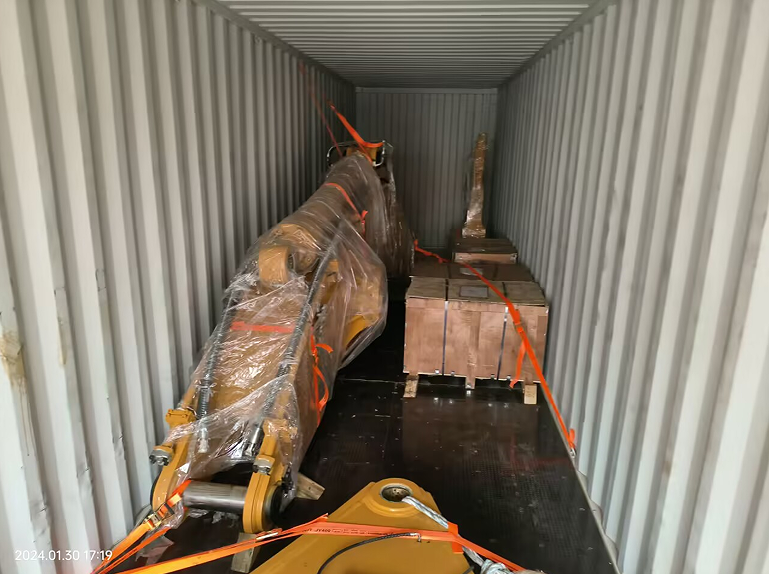

Usually use 40GP container to load product !

Contact sophia to inquiry details !
